I want to display pop-up windows on the screen.

This section explains how to display explanatory pop-up windows on the screen.

Creating the pop-up window

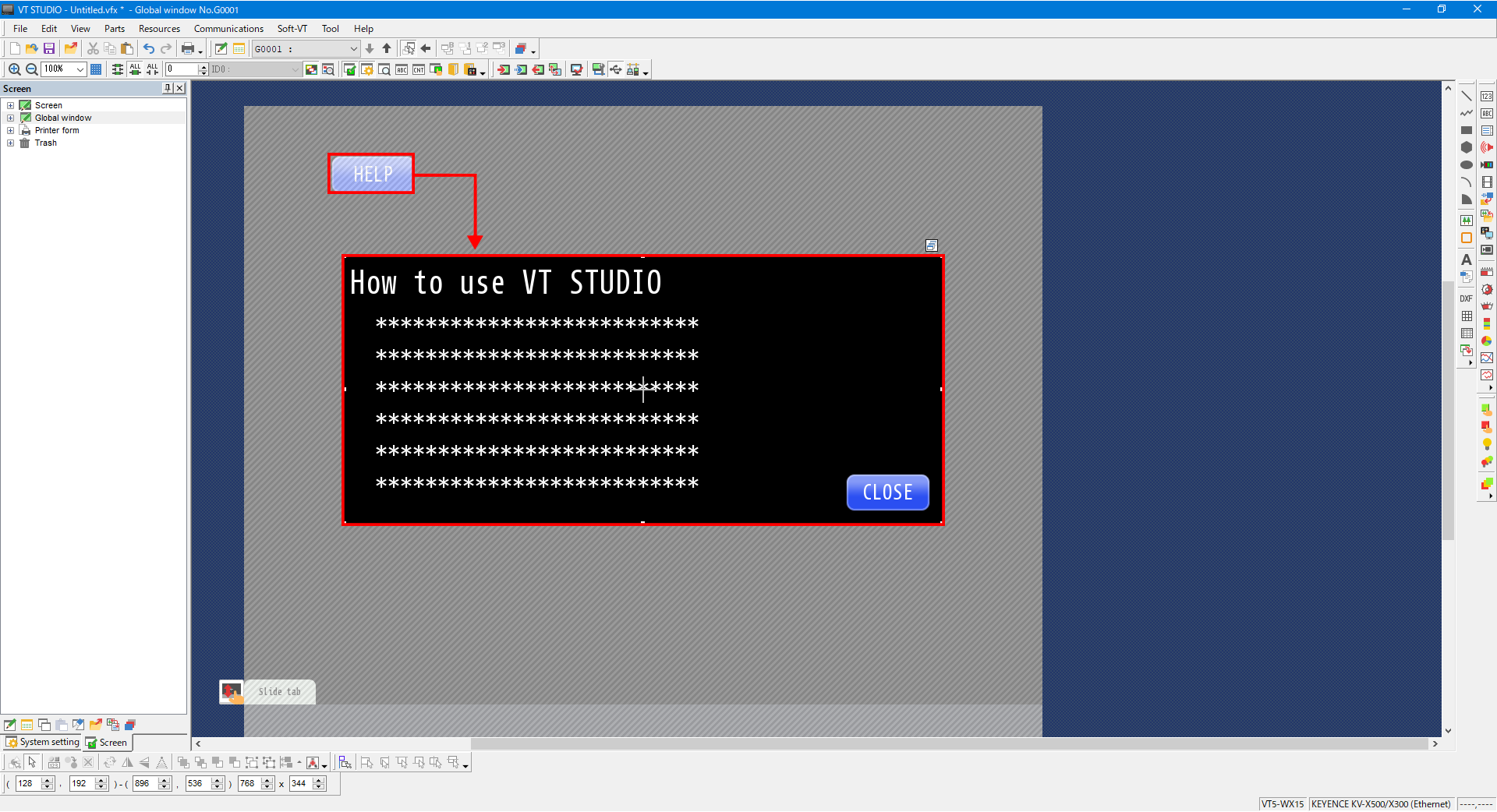

1. Create the pop-up window as a global window.

[Reference] I want to display warnings when alarms occur.

Settings for displaying the pop-up window

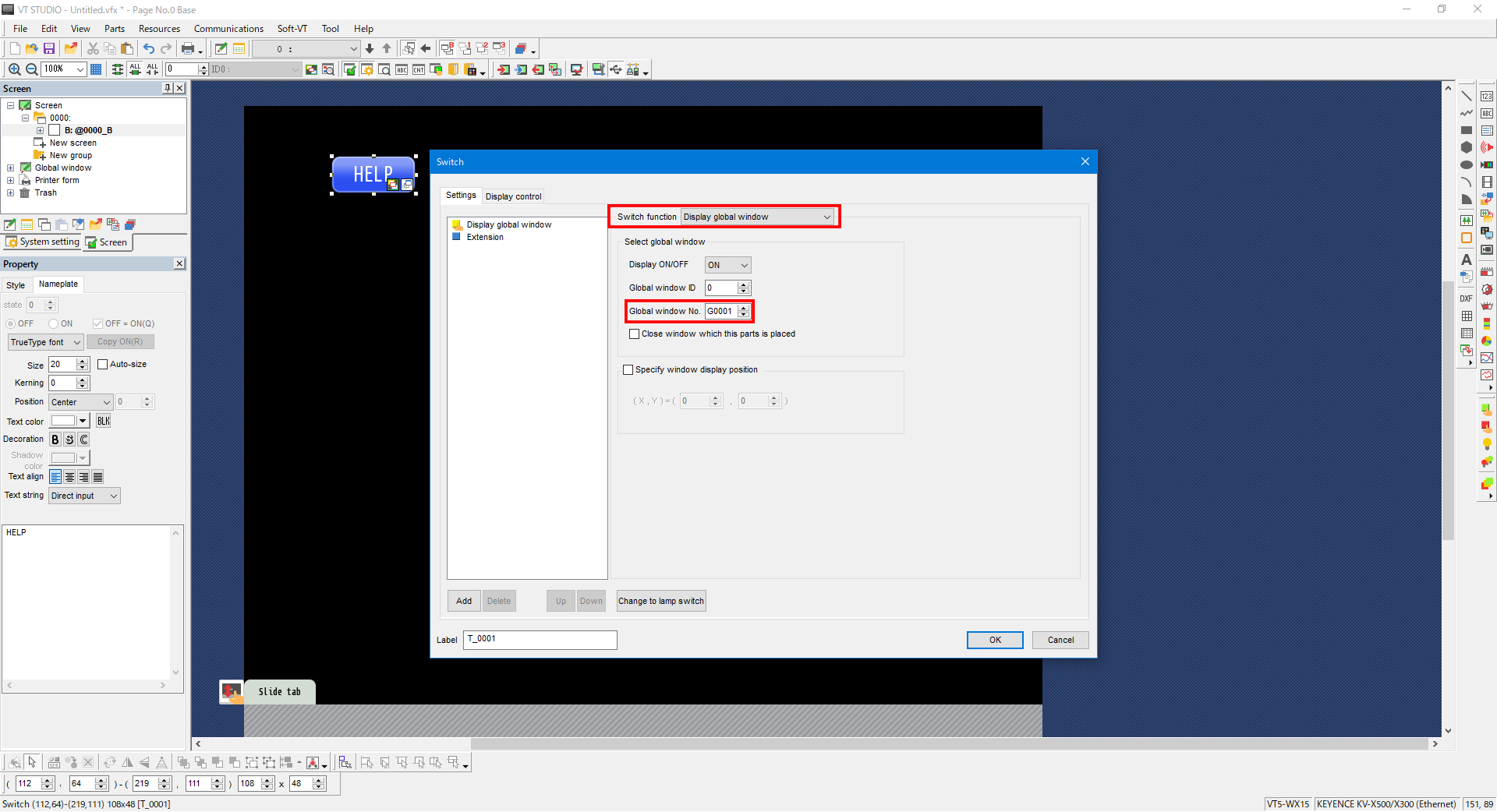

2. Place a switch for displaying the pop-up window, and then configure the settings as shown below. The example settings in the following figure are for displaying global window number 1.

3. Tap the switch to display the pop-up window.
